Surface Treatment

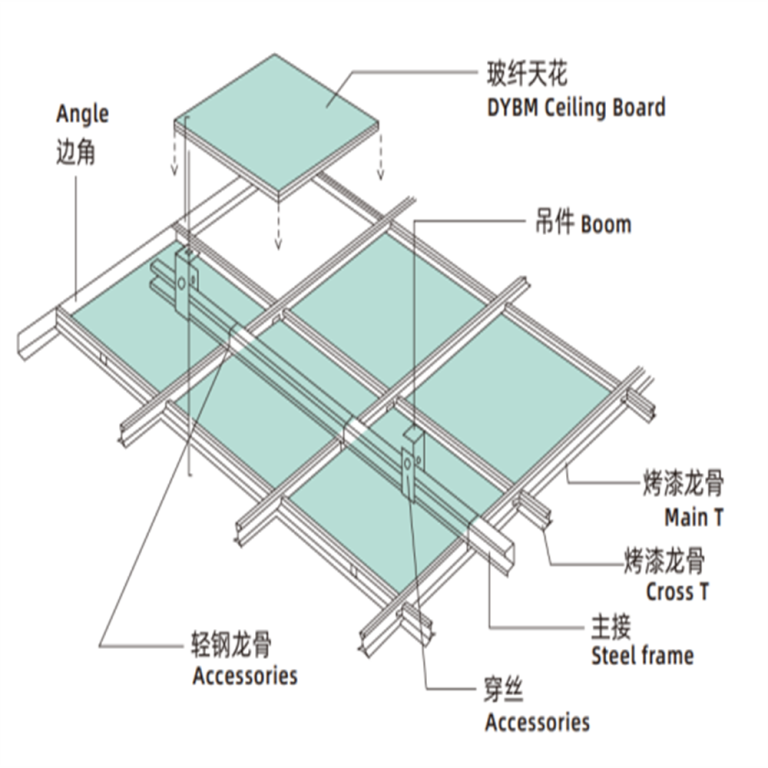

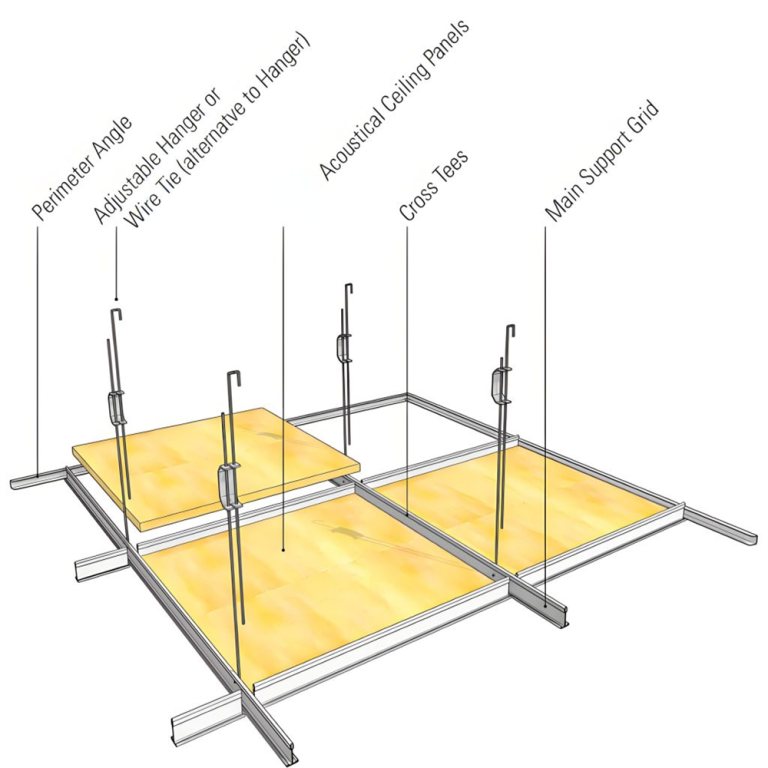

Installation Diagram:
Technicial Data
|
Item |
Base Standard |
Physical Characteristics |
|
|
Surface |
UL723, ASTM E84 |
Base glass fiber is non-combustible when tested. |
|
|
Burning Characteristics |
|
Flame Spread Index |
Smoke Developed Index |
|
|
≤ 25 |
≤ 50 |
|
|
Working Temperature Limitations |
ASTM C411 |
Operating temperature -4°C to +232°C At excessive temperatures, a limited migration of binder may occur in the insulation in contact with the hot surface. This is in no way impairs the performance of the insulation. |
|
|
Mold Growth |
ASTM C1338 |
Does not breed or sustain mold, fungus, bacteria or rodents. |
|
|
Corrosiveness |
ASTM C665 |
Chemically inert. Will not cause or accelerate corrosion of steel, stainless steel, copper or aluminum, due to its particular inorganic and mineral composition. |
|
|
|
|
|
|
|
Water Vapor Sorption |
ASTM C1104 |
Less than 1% by weight |
|
|
Odor Emission |
ASTM C1304 |
Passes, no detectable odor that is ojectionable and strong |
|
|
Alkalinity |
ASTM C871 |
pH 9 |
|
|
Non-Fibrous (Shot) Content |
ASTM C1335 |
Not applicable to glass mineral fiber products |
|
|
Light Reflection |
ASTM D523 |
WHITE: LR1 = 30 -60 |
|
|
Sound Transmission Coefficient |
ASTM E90 |
STC: 50 or greater |
|
|
Noise Reduction Coefficient |
ASTM E423 |
NRC: 0.85~1.0 |
|
