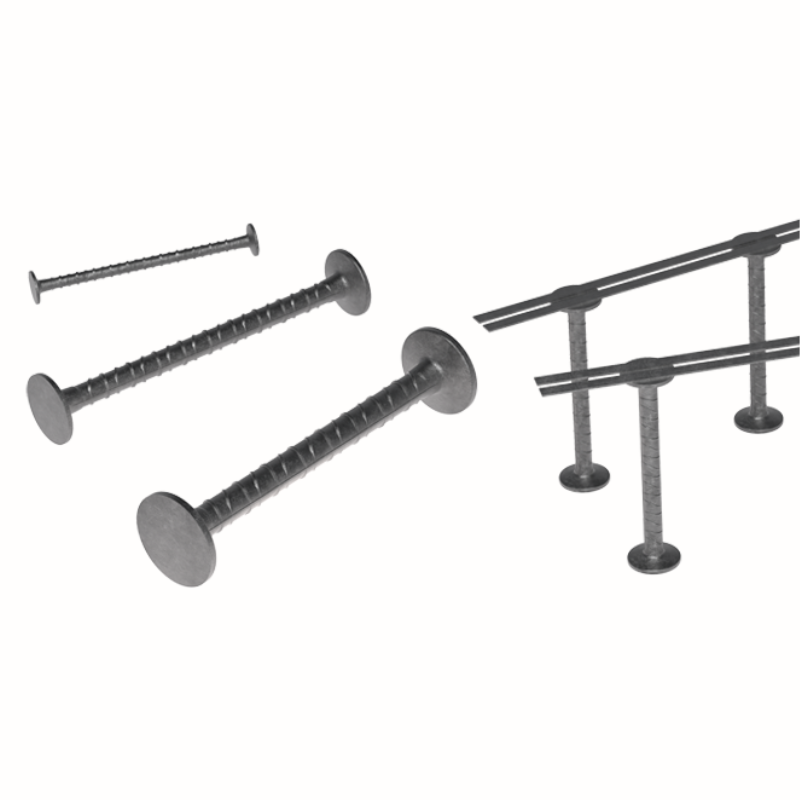

B420C or B500B Double Head Deformed Rebar Punching Shear Reinforcement Studs Rail EC2 Standard
Slab‑column connections made stronger and thinner. Hot‑forged from BS4449 B500B high‑strength steel, these double‑headed studs provide
3× the anchorage area of conventional rebar, reducing slab thickness by up to 20% while meeting seismic detailing requirements.
Tarco B500B double head deformed rebar punching shear reinforcement studs, also named double headed punching shear studs or double end headed anchor rebars, are critical structural reinforcement components to eliminate punching shear failure risk at slab-column joints. Two upset forged heads at both ends enable reliable mechanical anchorage inside concrete, distributing concentrated column load evenly across the slab section.
All raw material adopts European standard B500B ribbed deformed rebar, consistent chemical composition and mechanical properties meet EN 10080, Eurocode 2 design requirements, perfectly matching technical specification for punching shear reinforcement across Poland, Germany, France, Czech and whole EU construction markets.
Key Features & Technical Advantages of B500B Punching Shear Reinforcement Studs
- Raw Material: Full grade B500B deformed ribbed rebar, mechanical & chemical properties fully compliant with European construction standards
- Double hot-upset forged heads, stable anchoring performance, high tensile strength for punching shear resistance
- Customizable diameter & total length, support OEM production per customer technical drawings
- Available certification: CE marking, ETA assessment, independent European lab mechanical test reports, factory MTC material certificates
- Strict in-house quality control from raw material incoming, forging forming, sizing cutting to finished product inspection
- Large production capacity, stable lead time, bulk order competitive pricing for long-term construction project cooperation
- Suitable for precast concrete, cast-in-situ slab, high-rise building, parking structure, commercial foundation engineering
Manufacturing Excellence
Hot‑Forged, One‑Piece
Eliminates welding weak points. Head‑shaft junction strength +40% compared to welded alternatives, ensuring fatigue resistance.
100% Ultrasonic Testing
Every batch is scanned for internal voids and cracks. Zero‑defect policy — aerospace‑grade quality control.
Residual Stress Relief
Precision heat treatment ensures dimensional and mechanical stability from ‑20°C to +60°C.
Technical Specifications
Standard diameters and head dimensions. Custom lengths and head geometries available upon request.
| Stud Dia. (mm) | Head Dia. (mm) | Anchorage Area (mm²) | Yield (MPa) | Tensile (MPa) | Typical Application |
|---|---|---|---|---|---|
| 10 | 30 | 79 | 500 | ≥ 540 | Residential slabs |
| 12 | 36 | 113 | 500 | ≥ 540 | Commercial offices |
| 16 | 48 | 201 | 500 | ≥ 540 | Industrial floors |
| 20 | 60 | 314 | 500 | ≥ 540 | Heavy‑load warehouses |
| 25 | 75 | 491 | 500 | ≥ 540 | Bridges & special structures |
✅ Fully compliant with BS4449:2005, ASTM A1044, and EAD 330003‑01‑0601.

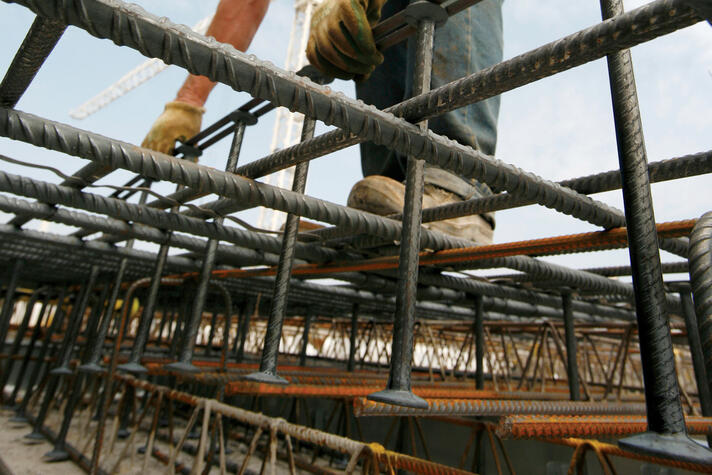

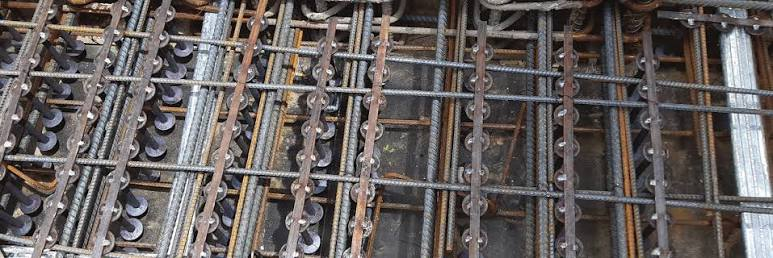

Application of B500B Double Head Punching Shear Reinforcement Studs
Our B500B double head punching shear reinforcement studs are widely applied to solve punching shear structural problems in below construction works:
- Flat slab & flat plate slab column connection reinforcement
- Concrete foundation slab, mat foundation punching shear reinforcement
- High-rise residential & commercial building floor systems
- Underground parking structure, basement slab reinforcement
- Precast concrete component, modular construction projects
- Bridge deck, civil infrastructure structural strengthening
- European construction projects in Poland, Germany, Austria, Czech, Slovakia, Hungary etc
Why Choose Our Factory for Double Head Punching Shear Studs
We are not trading company but professional manufacturer specialized in B500B double head deformed rebar punching shear reinforcement studs for over years. We own complete upset forging production line, dimension inspection equipment and quality control system to guarantee consistent product quality for bulk repeated orders. Whether small trial order or large project batch demand for punching shear reinforcement studs, we can arrange flexible production schedule and stable shipment schedule to match your construction project timeline. All our B500B double headed rebar studs can pass mechanical tensile test, yield strength test and elongation test required by European independent testing laboratory, meeting strict EU construction market access threshold.
