AWS D1.1 Headed Welded Shear Stud Rail | Shearfix Punching Shear Reinforcement Stud Rail

Headed Welded Shear Stud Rail is a high-performance prefabricated concrete punching shear reinforcement system for flat slab-column structural connections. Manufactured by Tarco Industry China, our Shearfix shear stud rail fully complies with AWS D1.1 welding standard. It provides reliable punching shear resistance to prevent slab failure, replaces traditional stirrups, and improves on-site concrete reinforcement efficiency for commercial and civil construction projects.

What is Headed Welded Shear Stud Rail for Punching Shear Reinforcement

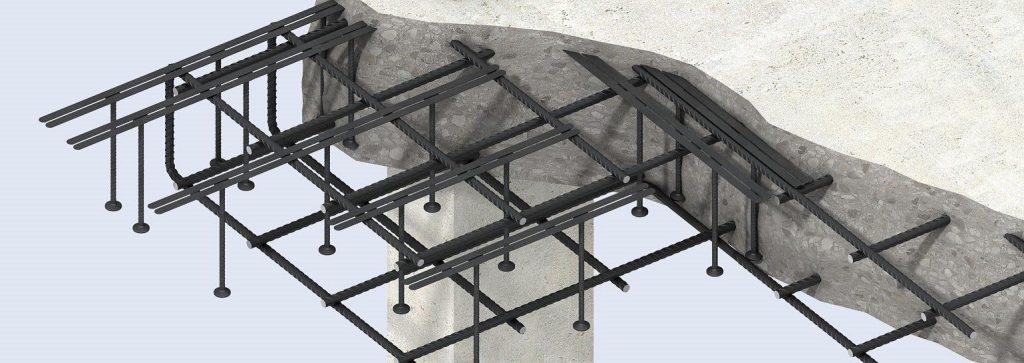

The shear stud rail assembly consists of double-headed forged steel shear studs factory-welded to flat steel rail plates. As a critical structural punching shear reinforcement solution, it distributes concentrated column point loads over a larger concrete surface, solving punching shear risks in thin flat slabs. Compared with conventional on-site stirrup reinforcement, Shearfix shear stud rail delivers higher shear capacity, stable structural performance and faster installation speed.

Material & Mechanical Properties (ASTM & AWS D1.1 Compliant)

Shear Stud Material (ASTM A108)

• Material Grade: Low Carbon Steel 1010–1020
• Minimum Yield Strength: 350 MPa (51,000 psi)
• Minimum Tensile Strength: 450 MPa (65,000 psi)
• Elongation (2 in): 20% Minimum
• Reduction in Area: 50% Minimum

Steel Rail Plate Material (ASTM A36 / 44W)

• Minimum Yield Strength: 300 MPa (44,000 psi)
• Minimum Tensile Strength: 450 MPa (65,000 psi)
• Elongation (8 in): 20% Minimum

Welding Standard

All stud welding processes strictly follow AWS D1.1 structural welding code, ensuring full structural integrity, anti-slip performance, and long-term load-bearing stability for shear reinforcement systems.

Key Advantages of Shearfix Punching Shear Stud Rail

• Higher Punching Shear Capacity: Outperforms traditional stirrup reinforcement, effectively resisting slab-column punching shear failure
• AWS D1.1 Compliant Welding Quality: Standardized factory welding, stable mechanical performance, no on-site welding defects
• Fast On-site Installation: Prefabricated assembly saves construction time, accelerates floor-to-floor cycle progress
• Reduce Reinforcement Congestion: Simplifies slab reinforcement layout, solves dense steel bar stacking problems
• No Column Caps Required: Optimizes structural design, reduces concrete usage and construction cost
• Engineered Custom Solution: Custom stud height, rail length and layout to match project punching shear design requirements
• High Slip Resistance & Load Stability: Reliable composite connection performance for steel-concrete composite structures

Applications of AWS D1.1 Shear Stud Rail Reinforcement

Our Shearfix punching shear reinforcement shear stud rail is widely applied in structural engineering scenarios requiring concrete punching shear enhancement:

• Concrete flat slab and column connection reinforcement
• High-rise commercial building floor systems
• Civil engineering structural renovation and shear upgrade
• Steel-concrete composite construction projects
• Large-span floor slab structural reinforcement
• Projects requiring AWS D1.1 standard structural welding components

Tarco Industry China Manufacturing Strength

As a professional China-based shear stud rail manufacturer, Tarco Industry China focuses on AWS D1.1 standard punching shear reinforcement products. We provide full-service support including structural parameter consultation, custom size production, technical datasheet supply, and project scheduling solutions. All shear stud rails are 100% factory prefabricated, inspected, and tested to meet international construction standards, delivering cost-effective and high-reliability shear reinforcement products for global engineering clients.

FAQ – Punching Shear Shear Stud Rail

1. What is the main function of headed welded shear stud rail?

Headed welded shear stud rail is designed for concrete punching shear reinforcement, dispersing column concentrated loads to prevent flat slab punching shear damage and improve overall structural stiffness.

2. Does your shear stud rail comply with AWS D1.1 standard?

Yes. All welding procedures of our Shearfix shear stud rail strictly follow the AWS D1.1 structural welding standard, fully compliant for international construction projects.

3. Can you provide custom shear stud rail sizes?

Tarco Industry China offers fully customized stud height, rail length and assembly layout according to client structural design and project requirements.

4. Why use shear stud rail instead of traditional stirrups?

Shear stud rail provides higher punching shear capacity, simpler installation, less on-site labor, no reinforcement congestion, and faster construction progress compared with conventional stirrup reinforcement.

5. Can I get a technical datasheet for the shear stud rail?

Sure, please contact Tarco Industry China to request the AWS D1.1 shear stud rail technical datasheet for your project design.
