Refractory C Clip With Channel — Stainless Steel Channel Clip for Ceramic Fiber Module Linings
Basically, a refractory C clip with channel is a metal clip with an integrated C-shaped channel. Then, workers weld a stud anchor to the steel shell and insert the channel clip over the stud. Additionally, the channel holds ceramic fiber modules and blankets tight against the shell. Therefore, Tarco Industry manufactures C clips with channel from 2–6mm wire in SS304, SS310, SS316, SS321 and Inconel 601. Furthermore, we can make them to your drawing. Also, our factory is ISO 9001:2015 certified.

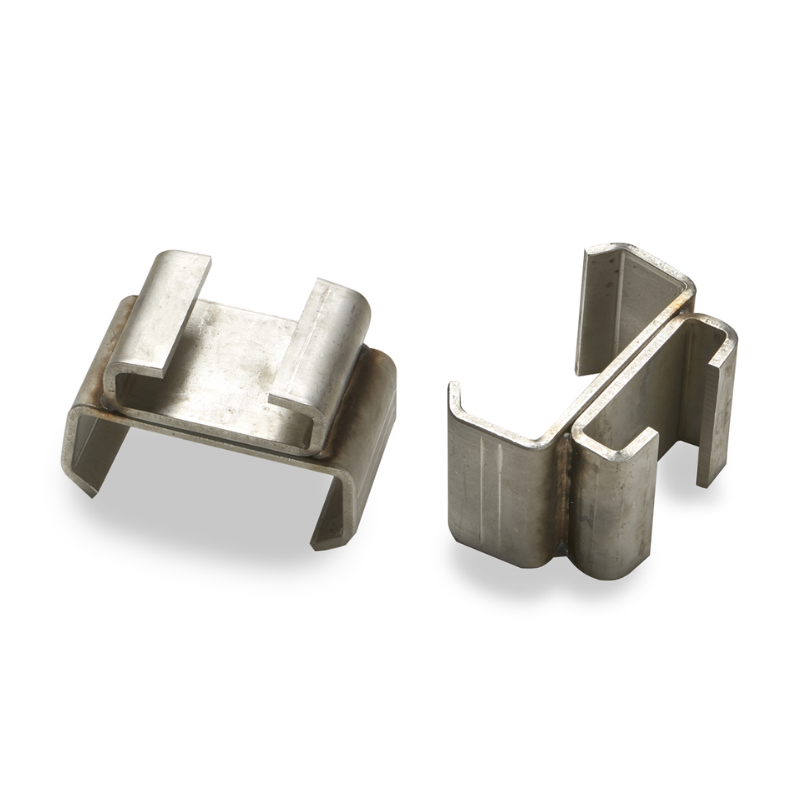

C Clip With Channel
Wire Diameter: 2–6mm
Max Temp: 1200°C
Custom-Made to Drawing
What Are Refractory C Clips With Channel?
Indeed, a refractory C clip with channel is the preferred fixing hardware for ceramic fiber module systems. First, workers weld a stud anchor to the steel shell. Next, they press a ceramic fiber module onto the stud. As a result, the channel C clip locks over the stud and holds the module tight against the shell. Moreover, the C-shaped channel runs parallel to the module folds and keeps the lining compressed during thermal cycling.
Additionally, channel C clips specifically suit ceramic fiber module and Z-block wall systems where quick and secure retention is required. They are easy to install by hand or with a speed clip tool. Furthermore, they protect the lining by stopping crevices from forming, which could lead to heat loss or hot-spot corrosion. However, manufacturers can produce the same channel clip geometry in Inconel 601 or Incoloy 800 when a higher-temperature grade is needed — for example in reformer or incinerator service above 1100°C.
For strict quality assurance, our refractory C clip with channel production follows ASTM standards. You can also view our full range of refractory anchors or contact Tarco Industry directly for custom requirements.
Refractory C Clip With Channel Specifications
| Product Name | Refractory C Clip With Channel / Channel C Clip |
|---|---|
| Clip Types | C Clip with Channel, C Channel Clip, Speed Clip, Custom-shaped |
| Material Grades | SS304, SS304L, SS310, SS310S, SS316, SS316L, SS321, SS330 Inconel 600, Inconel 601, Inconel 625 Incoloy 800 / 800H / 800HT Duplex 2205, 2507; Monel 400; Hastelloy C276 |
| Wire Diameter | 2mm – 6mm (standard); other diameters on request |
| Channel Width | 25mm – 50mm (standard); custom widths available |
| Max Service Temperature | SS304/316: ~800°C · SS310: ~1100°C · Inconel 601: ~1200°C |
| Surface Finish | Bright, pickled, or as-welded |
| Certification | ISO 9001:2015; Mill Test Certificate / NABL approved test certificate available |
| Customisation | We custom-make to drawing — any wire size, channel width, shape or material |
Channel C Clip Material Selection Guide
For example, choosing the correct material for your refractory C clip with channel is the single most important decision for clip service life. The clip sits inside the lining, close to the hot face. Consequently, it must retain its spring tension against oxidation, scaling and thermal fatigue.
SS 304 / 304L
Up to ~800°C
We recommend SS 304 / 304L for low-to-medium temperature ceramic fiber module linings, ducts and stacks. This general-purpose stainless steel offers good corrosion resistance and spring retention at a budget-friendly cost.
SS 310 / 310S
Up to ~1100°C
In contrast, SS 310 is the standard choice for most industrial furnace channel C clips. Its high chromium and nickel content delivers excellent oxidation resistance under cyclic heating conditions.
SS 316 / 316L
Up to ~870°C
Specifically, we recommend SS 316 / 316L for places with chlorides or reducing acids. This molybdenum-bearing grade is preferred where corrosion resistance is the primary concern.
Inconel 601
Up to ~1200°C
Furthermore, this nickel-chromium alloy features an aluminium addition for outstanding oxidation resistance at the highest temperatures. Additionally, it resists carburisation and sulfidation — making it ideal for reformers, incinerators and petrochemical heaters.
Refractory C Clip With Channel Applications
For instance, refractory C clips with channel are used across high-temperature industries wherever ceramic fiber module and blanket linings need quick mechanical retention:
- Ceramic fiber modules — folded-module and Z-block wall systems
- Ceramic fiber blanket — wallpaper and layered blanket systems
- Furnace linings — petrochemical process furnaces, heaters, stacks, breechings
- Kiln linings — cement rotary kilns, lime kilns, ceramic kilns
- Boiler & duct insulation — low and medium temperature linings in power plants
- Reformers & incinerators — Inconel 601 channel C clips for 1100–1200°C service
- Heat treatment furnaces — annealing, normalizing, tempering and hardening furnaces
Channel C Clip Installation & Ordering
Generally, installers use stud welding to attach the stud anchor directly to a clean, brushed area of the steel shell. Standard stud welding with a ceramic ferrule is the most common method. Subsequently, workers press the ceramic fiber module onto the stud. Finally, they snap the channel C clip over the stud with a speed clip tool or by hand. Also, they may use manual arc welding for larger-diameter studs or field repairs.
To order, first specify: clip type, material grade, wire diameter, channel width and quantity. Additionally, we can manufacture custom geometries — including asymmetric designs and longer channels — to your drawing. Consequently, our standard lead time is 2–4 weeks; however, custom clips take 3–6 weeks depending on material availability.
Request a Quote for Refractory C Clips With Channel
Send us your drawing, clip type, material grade and quantity. We will respond within 24 hours with pricing and lead time.
Refractory C Clip With Channel FAQ
What is the difference between a C clip with channel and a standard C clip?
What material should I use for a channel C clip at 1150°C?
Can channel C clips be made to custom dimensions?
Do you provide mill test certificates for channel C clips?
