As a result, we deliver factory-direct pricing, consistent dielectric quality, and fast delivery. Similarly, this applies to all your switchgear, substation, and electrical safety projects.
In addition, we produce these electrical safety mats to comply with BS921 and IEC 61111:2009 standards. Meanwhile, we offer the full range from Class 0 to Class 4. Therefore, they protect operators from electric shock in low voltage (LV), medium voltage (MV), and high voltage (HV) environments.
Technical Specifications of Electrical Insulating Rubber Mats
To begin with, we manufacture our insulating rubber mats in a full range of classes. Specifically, the table below summarizes the IEC 61111:2009 voltage ratings.
| Class | Max. Working Voltage (AC) | Proof Test Voltage (AC) | Withstand Voltage (AC) | Thickness | Colour Code | Typical Application |
|---|---|---|---|---|---|---|
| Class 0 | 1,000 V | 5,000 V | 10,000 V | 3 mm | Red | LV switchboards, server rooms |
| Class 1 | 7,500 V | 10,000 V | 20,000 V | 4 mm | White | MV switchgear, mining transformers |
| Class 2 | 17,000 V | 20,000 V | 30,000 V | 4.5 mm | Yellow | MV panels, industrial switchgear |
| Class 3 | 26,500 V | 30,000 V | 40,000 V | 5 mm | Green | HV substations, power generation |
| Class 4 | 36,000 V | 40,000 V | 50,000 V | 5.5 mm | Orange | HV transmission, 33kV installations |
Material & Technical Specifications for Electrical Safety Mats
- To begin with, we use high-grade EPDM rubber as the standard base material. This provides excellent dielectric strength for our electrical insulating mats.
- Moreover, we manufacture these ribbed rubber mats to comply with BS921 (tested to 15kV, 650V working voltage) and IEC 61111:2009 (Class 0 to Class 4).
- Additionally, we apply a fine ribbed anti-slip surface pattern on one side. This provides a firmer footing and reduces slip risk near live equipment.
- Furthermore, our switchboard mats are resistant to acid, oil, and UV radiation. They maintain dielectric integrity across a temperature range from -30°C to +80°C.
- For special orders, we supply flame retardant grades and low-emission materials to suit confined or high-risk environments.
- Finally, we offer OEM & ODM — we customize mat thickness, width, length, colour, surface pattern, and packaging according to your specifications.
BS921 & IEC 61111:2009 — Understanding the Standards for Insulating Rubber Mats
In fact, two key standards govern electrical insulating rubber mats in global markets. Furthermore, understanding the difference helps you select the right mat for your project.

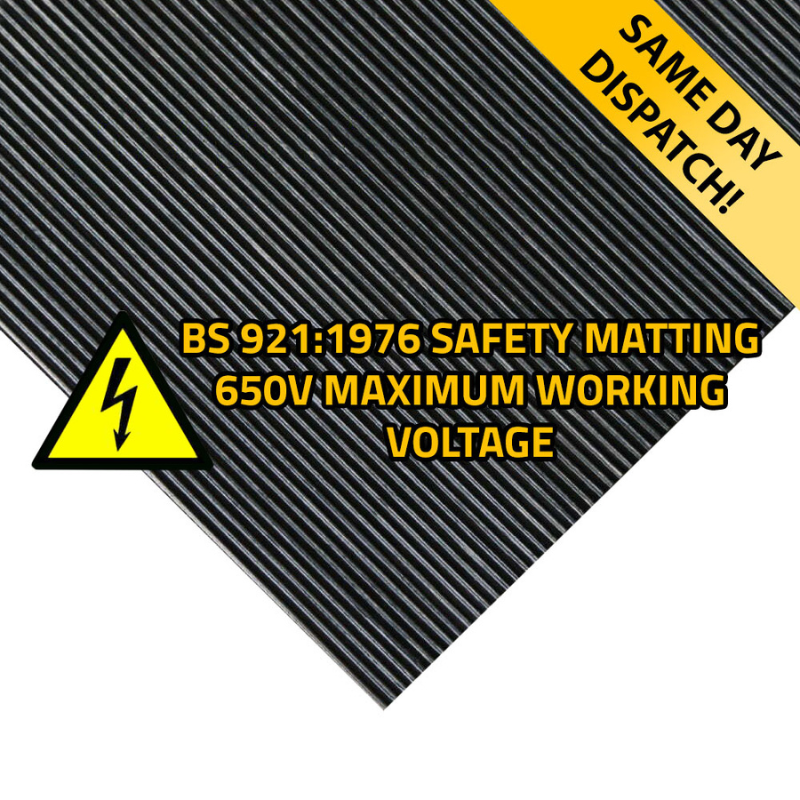

To begin with, BS921 is the British Standard for rubber mats for electrical purposes. It covers solid natural or synthetic rubber insulating mats for floor coverage near electrical apparatus with voltages up to 650V r.m.s. to earth. Our BS921 mats are fully certified and tested to 15kV with a recommended safety working voltage of 650V.
Moreover, IEC 61111:2009 is the international standard for electrical insulating matting. It defines five classes (Class 0 to Class 4) based on maximum working voltage. Therefore, Class 0 covers 1,000V and Class 4 covers 36,000V, providing a complete protection range for LV, MV, and HV applications.
BS921 Electrical Insulating Matting — Key Specifications
| Property | Specification |
|---|---|
| Test Voltage | 15,000 V |
| Working Voltage | 650 V |
| Thickness | 9.5 mm |
| Standard Roll Size | 10 m × 0.91 m / 1.0 m / 1.2 m |
| Surface Pattern | Fine ribbed / anti-slip |
| Tensile Strength | 5 MPa |
| Elongation (Min) | 250% |
| Hardness (Shore A) | 65° |
| Temperature Range | -20°C to +70°C |
About Our Factory — Direct Manufacturer of Electrical Insulating Rubber Mats
In fact, Tarco Industry operates a modern manufacturing facility. Specifically, we dedicate it to the production of electrical insulating rubber mats and electrical safety matting.
Furthermore, we complete every step in our own factory. This includes rubber compounding, calendering, vulcanization, surface embossing, and dielectric testing. Consequently, we do not outsource production. We do not act as a middleman.
In addition, we equip our factory with advanced mixing lines and automated vulcanization presses. As a result, we produce IEC 61111:2009 compliant insulating mats with consistent dielectric strength and reliable physical properties.
Therefore, whether you need Class 0 mats for LV switchboards or Class 4 mats for HV substations, Tarco Industry can produce them directly for you.
Factory Direct Advantages
- First, we are a Manufacturer, Not a Trader. You buy directly from Tarco Industry production lines, eliminating middleman markups.
- Second, we handle In-House Production. We produce rubber compounds, mats, and finished rolls all under one roof for full quality control.
- Third, we welcome OEM & ODM. We customize mat dimensions, thickness, colour, surface pattern, and packaging.
- Fourth, we maintain Bulk Production Capacity. We ensure stable output for large substation and infrastructure orders.
- Finally, we provide Factory Price. We offer competitive direct pricing for distributors, safety equipment suppliers, and EPC contractors.
Why Choose Our Ribbed Electrical Insulating Rubber Mats?
- For example, our mats offer Full IEC 61111:2009 Compliance. They cover Class 0 to Class 4 for complete LV, MV, and HV protection.
- In addition, they provide BS921 Certification. Our LV switchboard mats are tested to 15kV for 650V working voltage.
- Moreover, they feature a Ribbed Anti-Slip Surface. The fine fluted pattern provides a firmer footing near live equipment.
- Furthermore, they ensure High Dielectric Strength. EPDM rubber delivers reliable insulation against electric shock.
- As a result of their Chemical Resistance, the mats withstand acid, oil, and UV exposure in industrial environments.
- Finally, we provide Direct Factory Support. Tarco Industry provides technical guidance, samples, and custom production.
How to Install Electrical Insulating Rubber Mats
- First, prepare the floor surface. Ensure the floor is smooth, flat, rigid, and crack-free before laying the mat.
- Then, position the mat. Place the mat directly in front of the electrical installation or switchboard.
- Next, secure the mat. Use recommended adhesive if required, or simply loose-lay the mat for temporary installations.
- After that, inspect the mat. Visually check for damage, cuts, or wear before each use.
- Finally, maintain the mat. Clean with soap and water, and store in a dry environment away from direct sunlight.
Applications & Industries for Electrical Insulating Rubber Mats

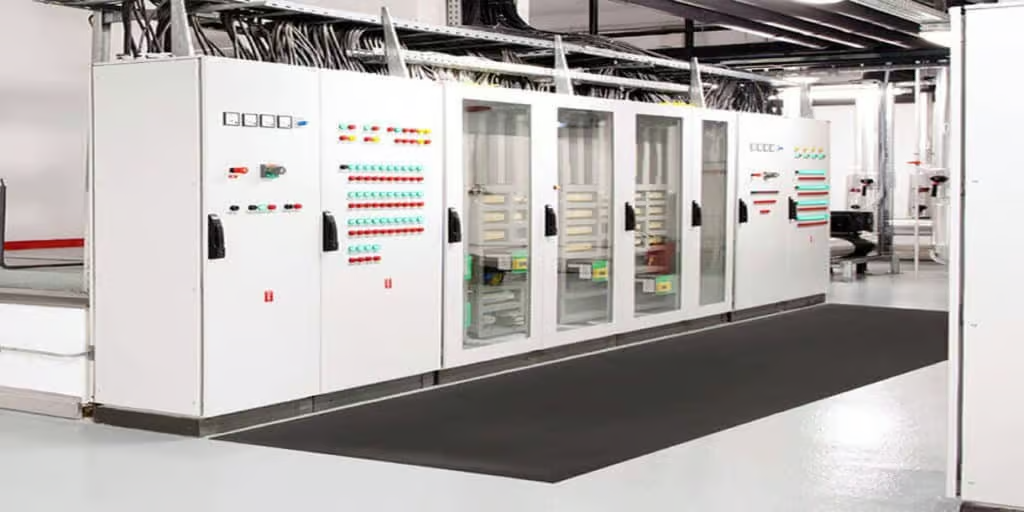

- For instance, in LV switchboards, Class 0 mats protect operators working on low voltage control panels and distribution boards.
- Also, in MV switchgear rooms, Class 1 and Class 2 mats provide reliable insulation for medium voltage equipment.
- In addition, for HV substations, Class 3 and Class 4 mats protect engineers working near high voltage transmission equipment up to 36kV.
- Furthermore, in power plants, our mats cover floors in control rooms, plant rooms, and generator areas.
- Lastly, in industrial maintenance facilities, they provide a safe anti-slip surface for engineers working near live equipment.
Quality Assurance & Certifications
Furthermore, Tarco Industry manufactures our electrical insulating rubber mats under strict quality control. Specifically, they comply with BS921 and IEC 61111:2009.
As a result, we perform dielectric testing, tensile testing, elongation testing, and hardness verification. Moreover, we test every production batch before shipment.
- Additionally, we offer certifications including ISO 9001, CE, and SGS.
- Similarly, our production capacity reaches 50,000 meters per month.
- Also, we set the MOQ at 500 meters (negotiable for sample orders).
- In terms of packaging, we offer rolls on pallets or wooden crates, with custom marking available.
- Finally, we deliver within 15–20 business days after order confirmation.
Request a Quote for Ribbed Electrical Insulating Rubber Mats
In conclusion, we are Tarco Industry. We are a direct manufacturer of ribbed electrical insulating rubber mats and electrical safety matting.
Therefore, because we produce in our own factory, we offer competitive factory-direct pricing. In other words, you deal with no middleman and no trading company markup.
📩 Contact Tarco Industry now for a free sample or bulk quotation. Additionally, our engineering team can assist you in selecting the right mat class and specifications.
Tarco Industry — We Produce, We Manufacture, We Supply Directly.
