As a result, we deliver factory-direct pricing, consistent adhesive quality, and fast delivery. Similarly, this applies to all your HVAC duct, metal building, and acoustic insulation projects.
In addition, we produce these peel and stick insulation hangers with a pressure-sensitive adhesive backing. Meanwhile, we supply them with self-locking washers (speed clips) as matched components. Therefore, mechanical contractors and insulation fabricators rely on them for fast, clean insulation attachment without welding equipment.

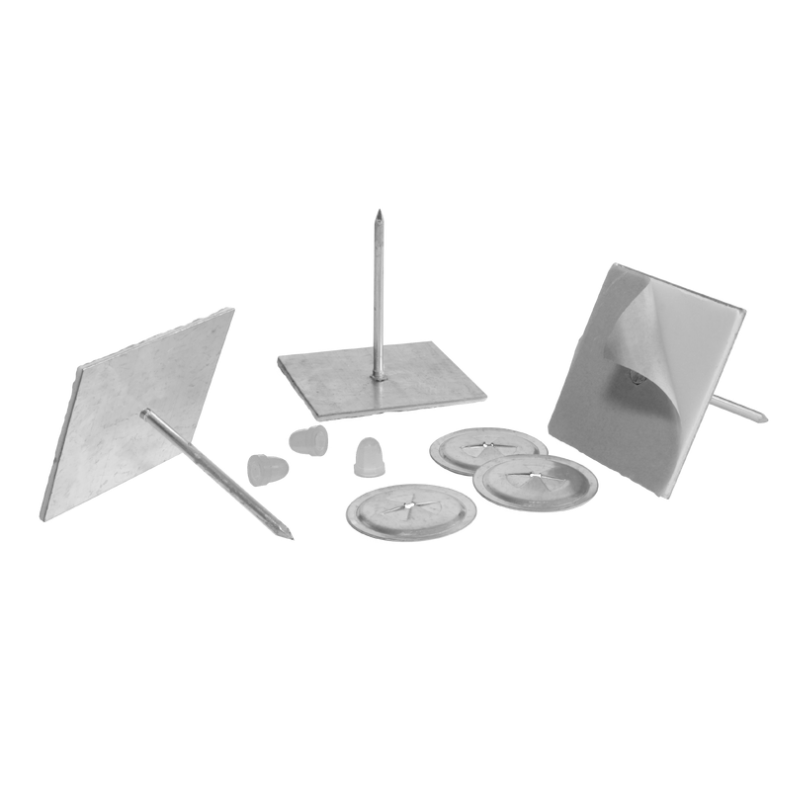

Technical Specifications of Self Adhesive Insulation Pins
To begin with, we manufacture our self adhesive hanger pins in a range of diameters and lengths. Specifically, the table below summarizes the standard product range.
| Pin Diameter | Pin Length | Base Size | Base Thickness | Adhesive Type | Typical Application |
|---|---|---|---|---|---|
| 12 GA (2.7 mm) | 1-1/4″ – 8″ | 2″ × 2″ | 0.4 mm | Pressure Sensitive | HVAC duct liner insulation |
| 12 GA (2.7 mm) | 2″ – 6″ | 2″ × 2″ | 0.4 mm | Pressure Sensitive | Metal building insulation |
| 14 GA (2.0 mm) | 1″ – 4″ | 1″ × 1″ | 0.3 mm | Pressure Sensitive | Light insulation & acoustic panels |
| 12 GA (2.7 mm) | 62 mm – 115 mm | 50 × 50 mm | 0.4 mm | PE Foam Tape | Marine engine room & compressor enclosure |
Material & Adhesive Specifications for Self Stick Insulation Pins
- To begin with, we use high-strength galvanized steel as the standard material for the pin and base plate. This provides reliable corrosion resistance for our self adhesive insulation pins.
- Moreover, the base plate is fabricated from galvanized steel sheet DX 51 D with a zinc coating of 275 g/m² on both sides[reference:1].
- Additionally, we apply a pressure-sensitive adhesive tape made from cross-linked polyethylene (PE) foam laminated with synthetic rubber resin adhesive. The adhesive is protected by a wax paper release liner until installation[reference:2].
- Furthermore, our self adhesive pins achieve a tensile strength of 1.3 KN/m per ASTM D 882 and a shear strength of 600 ks per FTM.2 / Finat.8 / PSTC.7[reference:3].
- For special orders, we supply aluminum and stainless steel pins for corrosion-sensitive or high-temperature applications.
- Finally, we offer OEM & ODM — we customize pin diameter, length, base dimensions, adhesive type, and packaging according to your specifications.
How Self Adhesive Insulation Pins Work — Peel & Stick Fastening
In fact, the self adhesive weld pin offers a clean, weld-free fastening method for insulation materials. Furthermore, it is ideal for surfaces where welding is not practical or permitted.
To begin with, you clean the mounting surface to remove dust, oil, and loose matter. Then, you peel off the protective release paper from the adhesive backing. Next, you press the base firmly against the surface to be insulated[reference:4]. After that, you impale the insulation material over the protruding pin. Finally, you secure the insulation with a self-locking washer (speed clip) pressed onto the pin[reference:5].
Therefore, the self adhesive method eliminates the need for welding equipment, adhesives, and curing time. As a result, contractors can install insulation quickly and cleanly with minimal tools.
Key Advantages of Self Adhesive Insulation Pins
- First, the peel and stick backing installs in seconds without welding, drilling, or messy adhesives.
- Second, the pressure-sensitive adhesive bonds firmly to clean metal, concrete, and wood surfaces[reference:6].
- Third, the self-locking washer presses onto the pin and locks the insulation securely in position.
- Finally, only the pin and washer are needed. No through-holes, no secondary operations, and no special tools for assembly.
Self-Locking Washers — Speed Clips for Insulation Retention
In addition, the self-locking washer is a critical accessory for completing the insulation fastening operation. Furthermore, we supply these washers as a matched component with our self adhesive pins.
To begin with, you simply press the self-locking washer (also called a speed clip or dome cap) onto the pin up against the insulation. Meanwhile, the domed, multi-lanced hole design provides positive locking. Then, you clip off or bend over the remaining portion of the pin for a permanent attachment[reference:7].
Self-Locking Washer Specifications
- First, we offer round and square self-locking washers in various sizes.
- Second, standard diameters include 1″, 1-3/16″, 1-1/2″, and 2″.
- Third, standard thickness is 0.015″ nominal, formed from galvanized steel.
- Finally, we also supply aluminum and stainless steel washers for special applications.
About Our Factory — Direct Manufacturer of Self Adhesive Insulation Pins
In fact, Tarco Industry operates a modern manufacturing facility. Specifically, we dedicate it to the production of self adhesive insulation pins and peel and stick hanger pins.
Furthermore, we complete every step in our own factory. This includes wire drawing, cold heading, baseplate stamping, adhesive lamination, and packaging. Consequently, we do not outsource production. We do not act as a middleman.
In addition, we equip our factory with advanced cold heading machines and automated adhesive lamination lines. As a result, we produce high-strength self adhesive insulation pins with consistent adhesive coverage and reliable peel strength.
Therefore, whether you need standard pins or custom configurations, Tarco Industry can produce them directly for you.
Factory Direct Advantages
- First, we are a Manufacturer, Not a Trader. You buy directly from Tarco Industry production lines, eliminating middleman markups.
- Second, we handle In-House Production. We produce pins, bases, adhesives, and washers all under one roof for full quality control.
- Third, we welcome OEM & ODM. We customize pin dimensions, base sizes, adhesive types, and packaging.
- Fourth, we maintain Bulk Production Capacity. We ensure stable output for large HVAC and industrial insulation orders.
- Finally, we provide Factory Price. We offer competitive direct pricing for distributors, insulation contractors, and OEMs.
Why Choose Our Self Adhesive Insulation Pins?
- For example, our pins offer Weld-Free Installation. The peel and stick backing eliminates the need for welding equipment and trained operators.
- In addition, they provide Strong Pressure-Sensitive Adhesion. The cross-linked synthetic rubber adhesive bonds firmly to metal, concrete, and wood.
- Moreover, they feature Precision Base Stamping. Consistent base dimensions ensure reliable adhesive coverage and surface contact.
- Furthermore, they ensure Secure Insulation Retention. Self-locking washers with domed locking holes hold insulation firmly without cutting the facing.
- As a result of their Corrosion Resistance, the galvanized pin and base resist rust in humid or outdoor environments.
- Finally, we provide Direct Factory Support. Tarco Industry provides technical guidance, samples, and custom production.
How to Install Self Adhesive Insulation Pins
- First, prepare the surface. Clean the mounting surface to remove dust, oil, moisture, and loose matter. Ensure the surface is dry and smooth.
- Then, peel off the release paper. Remove the wax paper backing from the adhesive base, taking care not to touch the adhesive surface.
- Next, press the pin into place. Position the hanger pin at the desired location and press the base firmly against the surface. Apply steady pressure for a few seconds to ensure full adhesive contact.
- After that, impale the insulation. Push the insulation material over the pin until it rests against the base or the mounting surface.
- Finally, secure with self-locking washer. Press the self-locking washer onto the pin up against the insulation. Clip off or bend over the remaining pin portion for a permanent attachment.
Applications & Industries for Self Adhesive Insulation Pins
- For instance, in HVAC duct systems, contractors use our pins to attach duct liner and external insulation to sheet metal ducts[reference:8].
- Also, in metal building insulation, they secure insulation to metal building walls, roofs, and ceilings.
- In addition, for acoustic insulation, they fasten sound-absorbing materials in marine engine rooms, bus and truck engine bays, and compressor enclosures[reference:9].
- Furthermore, in concrete and masonry surfaces, they attach insulation boards and blankets where welding is not possible.
- Lastly, in wooden structures, they secure insulation to the underside of wooden roofs and timber frames[reference:10].
Quality Assurance & Certifications
Furthermore, Tarco Industry manufactures our self adhesive insulation pins under strict quality control. Specifically, they comply with industry standards for ASTM A108 material requirements and ISO 13918 for stud welding fasteners.
As a result, we perform dimensional inspection, adhesive peel strength testing, and base flatness verification. Moreover, we test every production batch before shipment.
- Additionally, we offer certifications including ISO 9001, CE, and SGS.
- Similarly, our production capacity reaches 500,000 pcs per month.
- Also, we set the MOQ at 10,000 pcs (negotiable for sample orders).
- In terms of packaging, we offer bulk cartons on pallets with custom marking.
- Finally, we deliver within 15–20 business days after order confirmation.
Request a Quote for Self Adhesive Insulation Pins
In conclusion, we are Tarco Industry. We are a direct manufacturer of self adhesive insulation pins, peel and stick hanger pins, and self-locking washers.
Therefore, because we produce in our own factory, we offer competitive factory-direct pricing. In other words, you deal with no middleman and no trading company markup.
📩 Contact Tarco Industry now for a free sample or bulk quotation. Additionally, our engineering team can assist you in selecting the right pin diameter, length, and washer type for your specific insulation fastening application.
Tarco Industry — We Produce, We Manufacture, We Supply Directly.
