Punching Shear Resistor (PSR) Weld Stud For Stud Rail Syetem

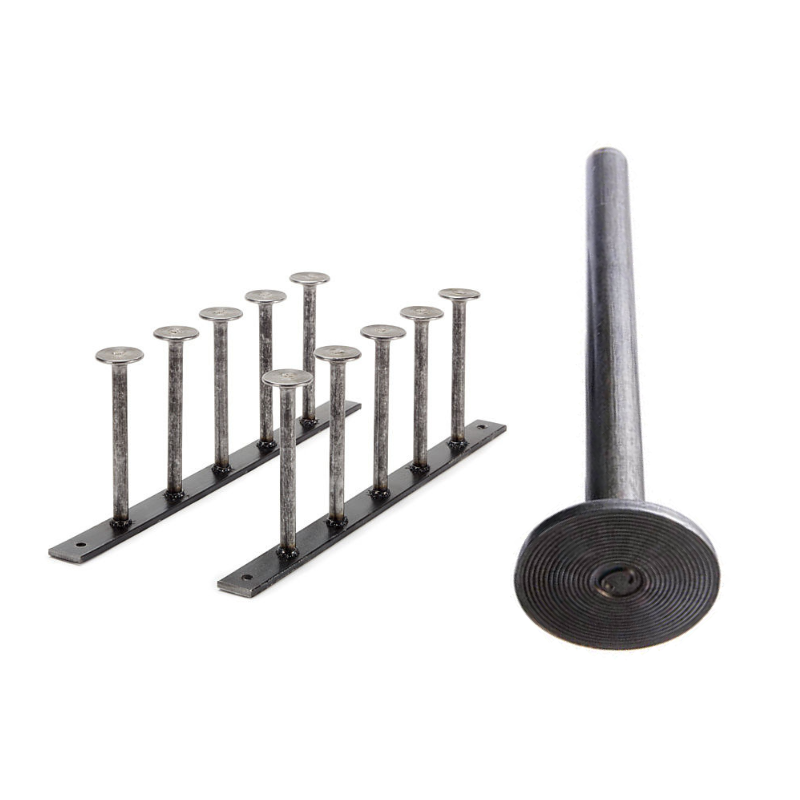

Stud Rail / Punching Shear Resistor (PSR) Weld Stud Specifically designed to be welded to flat rails. for slab connections to columns and foundations to provide a strong. ductile reinforcement system to prevent punching shear when columns punch through cast-in-place concrete. floors and foundation slabs. and to transfer concentrated loads further into the slab to create a larger shear area around the column.
✔️ FIELD PROVEN PUNCHING SHEAR REINFORCEMENT
Punching Shear Resistor (PSR) Weld Stud
Industry-Accurate PSR Stud Dimensions | AWS D1.1 | ASTM A1044 | ICC-ES ESR-2938
PSR (Punching Shear Resistor) headed studs are large-head shear connectors welded to steel base rails — increasing punching shear capacity in flat slabs, bridge decks, and footings. Trusted for Tarco stud welding and prefabricated stud rail assemblies.
📐 Actual PSR Stud Dimensions & Production Drawing
Fig 1: PSR headed weld stud configuration — head diameter (D), head thickness (T), shank diameter (d). Based on ASTM A1044 / AWS D1.1.
| Stud Diameter (d) inches [mm] |
Head Diameter (D) inches [mm] |
Head Thickness (T) inches [mm] |
Min. Length (L) inches [mm] |
Max Length (L) inches [mm] |
Typical Fillet Ø |
|---|---|---|---|---|---|
| 3/8″ [9.5mm] | 1.19″ [30.1mm] | 0.26″ [5.3mm] | 3-1/8″ [79mm] | 27″ [686mm] | 1/2″ |
| 1/2″ [12.7mm] | 1.58″ [40.2mm] | 0.33″ [7.1mm] | 2-7/8″ [73mm] | 62″ [1575mm] | 11/16″ |
| 5/8″ [15.9mm] | 1.98″ [50.2mm] | 0.40″ [8.9mm] | 3-7/8″ [98mm] | 62″ [1575mm] | 7/8″ |
| 3/4″ [19.1mm] | 2.37″ [60.2mm] | 0.47″ [10.7mm] | 3-13/16″ [97mm] | 62″ [1575mm] | 1-1/16″ |
✔ Above dimensions comply with ICC-ES ESR-2938, ASTM A1044 and AWS D1.1. Custom lengths above minimum available. Studs are traceable with heat code stamped on head (per TRU-WELD & industry practice).
🌍 Standards & Code Approvals
- ✅ ASTM A1044 Standard Specification for Steel, Stud Assemblies
- ✅ AWS D1.1 / D1.1M Structural Welding Code – Steel
- ✅ ICC-ES ESR-2938 (SRL PSR Shear Rails)
- ✅ ICC-ES ESR-1170 (Nelson PSR Studs)
- ✅ ACI 318 Building Code Punching shear design provisions
- ✅ IBC / UBC compliance
Traceable mill certs + full compliance with international building codes (IBC).
⚙️ Mechanical Properties (Per ASTM A1044 / AWS D1.1)
- Material Grade:ASTM A29 / A108 1010–1020 Low Carbon Steel
- Min. Yield Strength (0.2% offset):51,000 psi [350 MPa]
- Min. Tensile Strength:65,000 psi [450 MPa]
- Elongation in 2″ (51mm):20% minimum
- Reduction of Area:50% min.
- Head Hardness:Typical 70–85 HRB
🏗️ Application Areas — Flat Slabs & Tarco Welding
PSR weld studs are the industry standard for punching shear reinforcement in reinforced concrete structures. The headed studs are welded to flat steel bars (forming stud rails) to replace traditional stirrups or drop panels.
Tarco Stud Welding Ready: PSR studs are compatible with drawn arc stud welding systems (Nelson®, Tru-Weld®). Single-side access, fast installation, high pull-out strength — ideal for both precast plants and field welding crews.
✅ Product Advantages — Why PSR Headed Studs
- 🔹 Punching shear capacity increased up to 2.5× vs conventional rebar.
- 🔹 Reduces slab thickness and column congestion.
- 🔹 Head geometry provides full anchorage in concrete.
- 🔹 Compatible with high-speed drawn arc welding — ideal for Tarco welding.
- 🔹 Replace stirrups + column capitals → faster installation and lower labor.
- 🔹 Traceability: heat numbers stamped on each stud head.
- 🔹 Galvanized / epoxy coating available for aggressive environments.
🏗️ Field Deployment — Tarco Stud Welding of PSR Rails
Why PSR studs are preferred for Tarco stud welding: The drawn arc stud welding process allows operators to weld headed shear studs to base rails or directly to embed plates in one single-sided operation — no holes, no back-side access. Typical field procedures follow AWS D1.1 and manufacturer WPS (Welding Procedure Specifications). PSR stud diameters from 3/8″ to 3/4″ can be welded with standard arc stud welding equipment (Nelson N800i / Tru-Weld CD systems).
Stud welders with generator compatibility.
3–6 studs per minute, minimal heat affected zone.
No back-up required, ideal for decks and rebar congested zones.
For each project, Tarco welding parameters (current, time, lift) must be qualified. PSR stud rails fabricated off-site (pre-welded to base rail) reduce field labor, while loose PSR studs allow maximum flexibility.
🔎 Target search clusters (PSR + Tarco stud welding): Punching Shear Resistor stud dimensions | PSR headed stud ASTM A1044 | 3/4 PSR weld stud head diameter | 5/8 PSR stud yield strength | Tarco stud welding of shear rails | concrete slab punching shear reinforcement | field arc stud welding for PSR | TRU-WELD PSR stud datasheet | ICC-ES ESR-2938 stud rail.
Page optimized for structural engineers, concrete contractors and stud rail fabricators — accurate dimensions + real mechanical properties based on industry-approved reports.
